20W 43dBm 1.4G RF Wireless Signal Bidirectional Booster Power Amplifier HS14154040D2

Product Categories

Zhongshi Zhihui Technology (suzhou) Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 20W 43dBm 14G RF Wireless Signal Bidirectional Booster Power Amplifier HS14154040D2
Brand: SZHUASHI
Price: 129 USD

Brand Name : SZHUASHI

Model Number : HS14154040D2

Place of Origin : Jiangsu，China

MOQ : 1 Piece

Price : 129USD each

Payment Terms : T/T

Supply Ability : 1000000/Year

Delivery Time : 2-7 days

Packaging Details : Carton

Contact Now

20W 43dBm 1.4G RF Wireless Signal Bidirectional Booster Power Amplifier HS14154040D2

Product Description

Frequency Range:1.4G	Operating Voltage:8~24V(Default 12V)
Receiving Gain:10~25dB(Default 18 dB)	Transmission Gain:10~25dB(Default 18 dB)
Input Trigger Power:5~25dBm	Maximum Output Power(P1dB):43dBm (20W)
Operating Current:1800mA@Pout 37dBm 12V	Noise Figure:≤3.0dB
TX/RX Switch Time Delay:≤1μs	Operating Ambient Temperature:-20℃~60℃

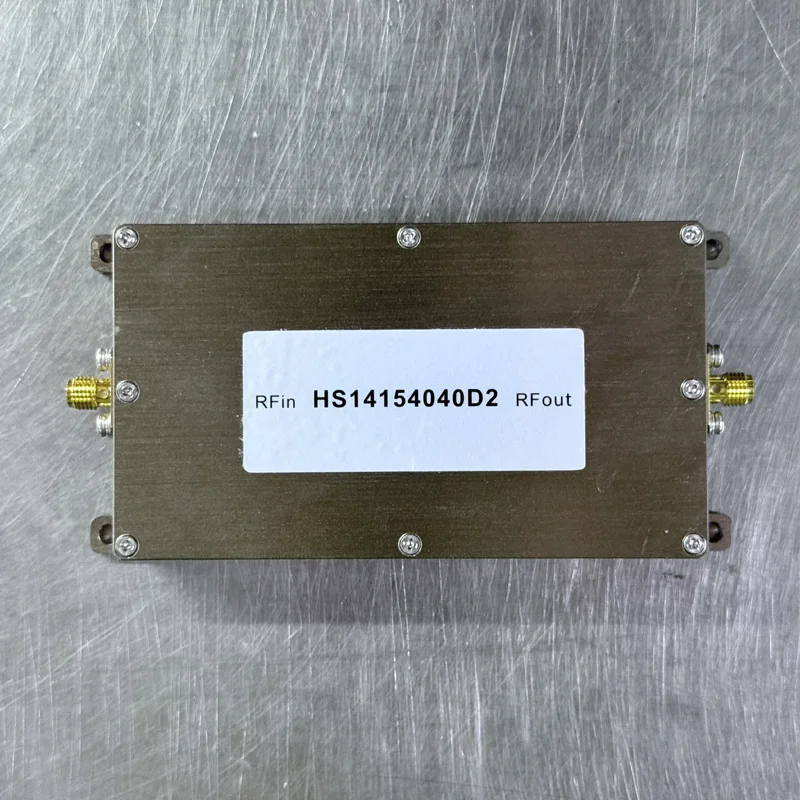

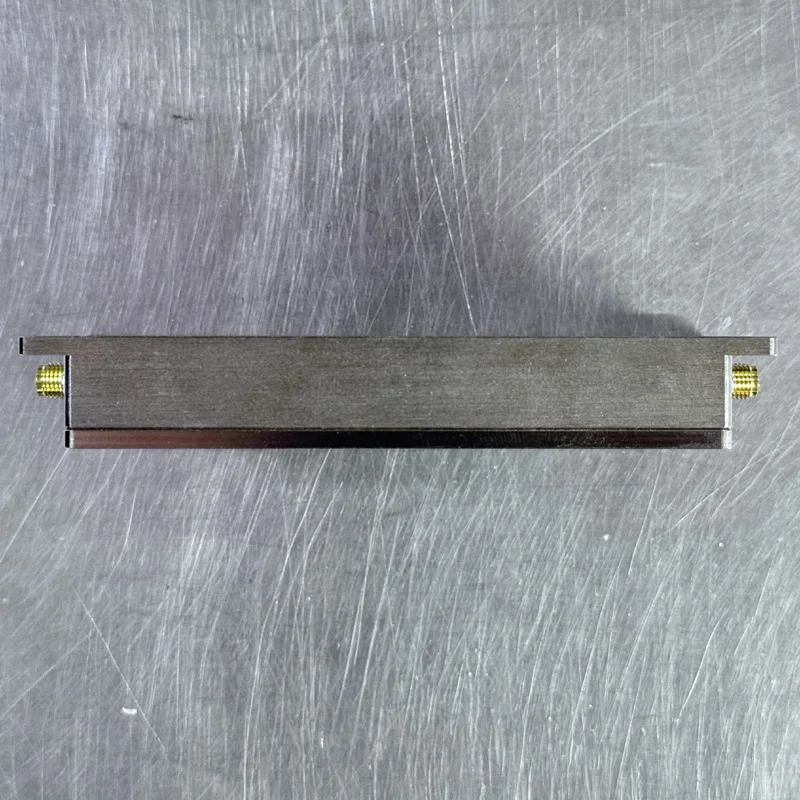

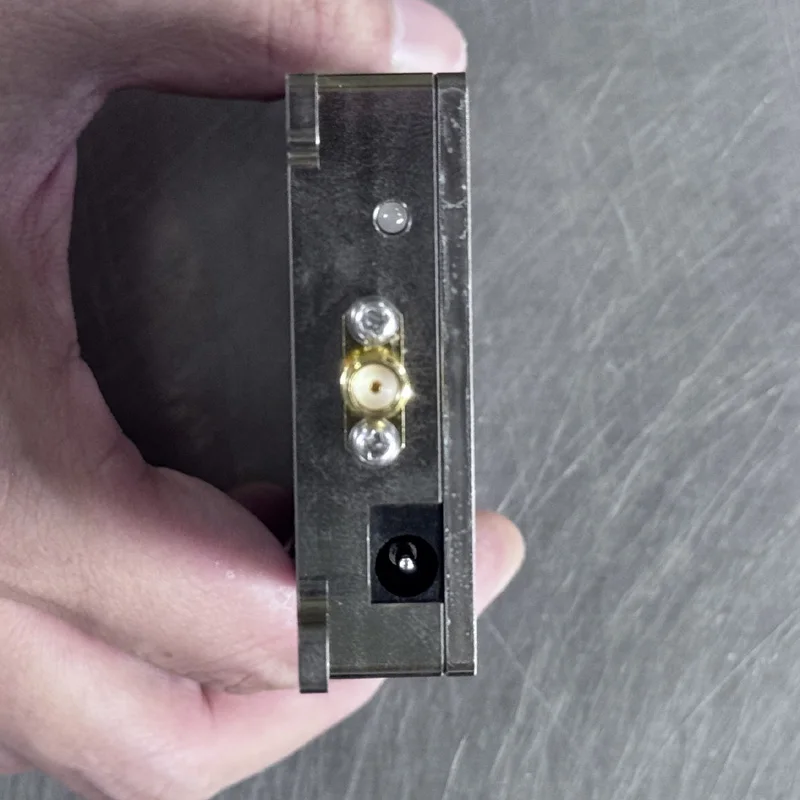

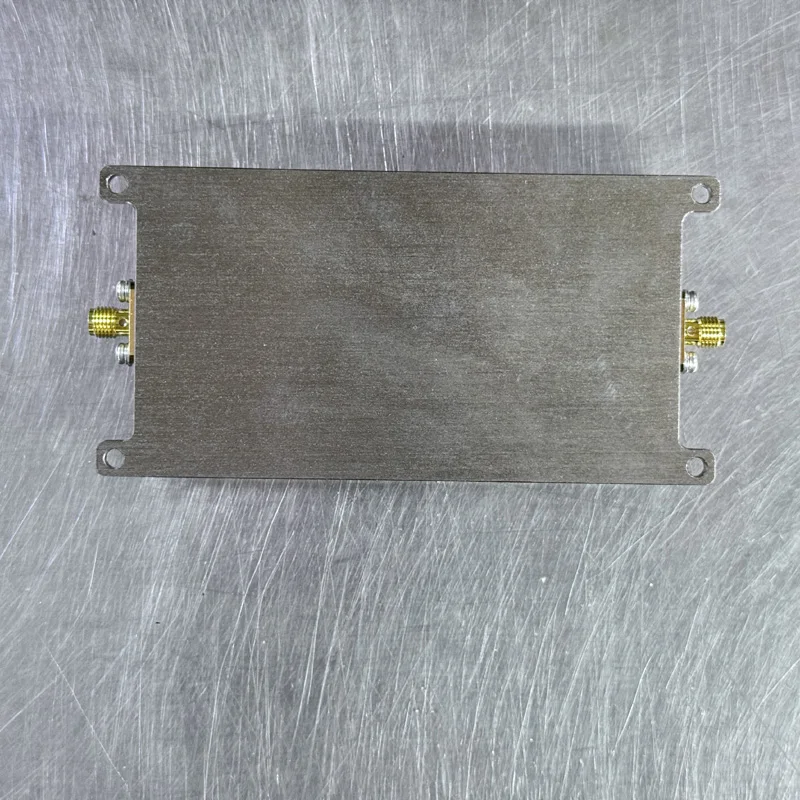

20W 43dBm 1.4G RF Wireless Signal Bidirectional Booster Power Amplifier HS14154040D2

20W RF signal booster amplifier
